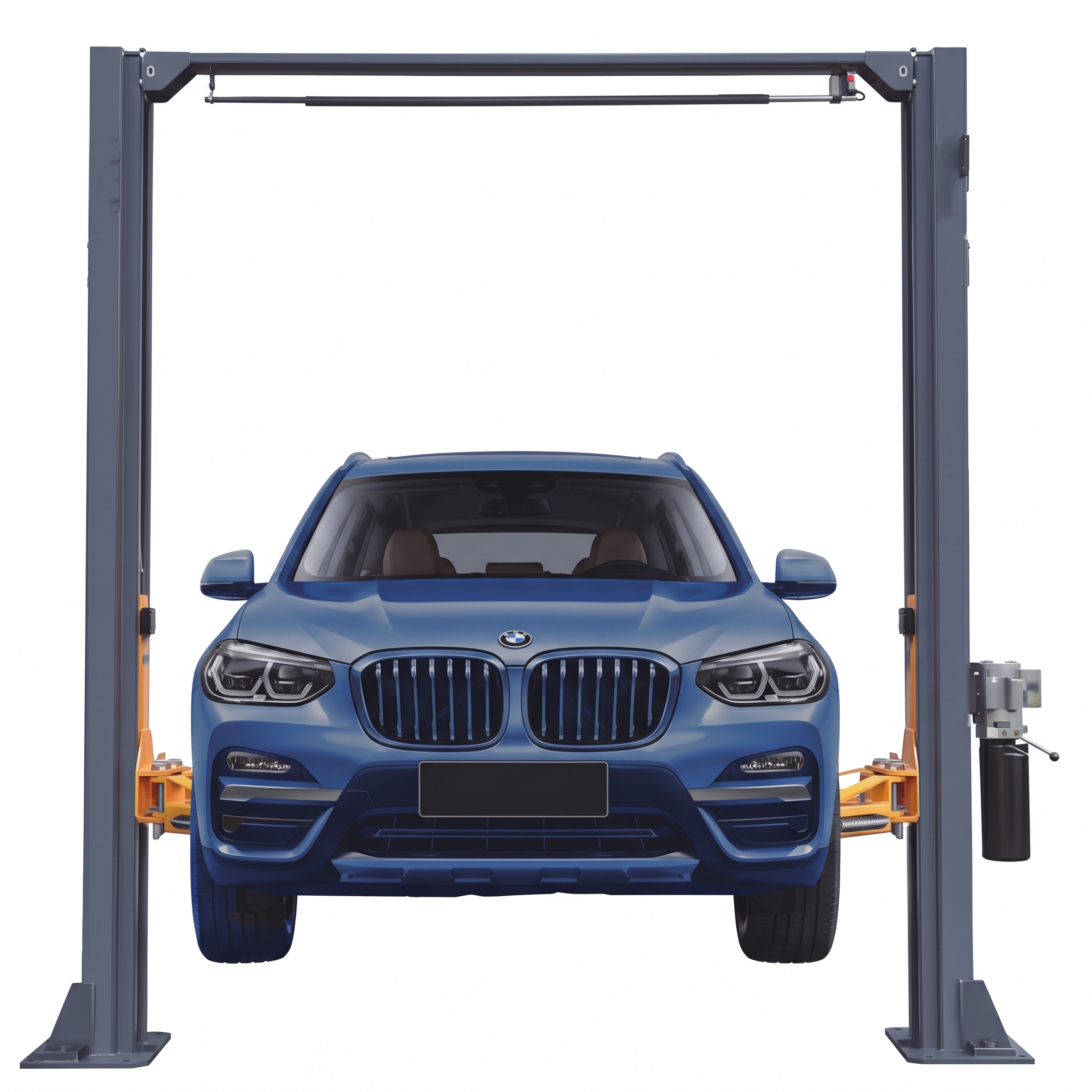

5 Ton Clear-Floor Gantry Two-Post Car Lift
The HPL-TG350A is a 5-ton clear-floor two-post car lift with an overhead gantry and no floor plate. Rated capacity is 5000 kg (11,000 lb). The open bay underneath gives full access for transmissions, exhaust, and rolling jacks. Lifting height is 1800 mm. Minimum pad height is 92 mm.
Passing width is 2400 mm. Overall machine width is 3420 mm and overall height is 3587 mm. Confirm ceiling clearance before install. Rise time is within 50 seconds. Descent is adjustable from 20 to 50 seconds.
Shop features
- Eight-bend formed columns for higher column stiffness under heavy vehicles
- One-piece bent arm carriage sized for the 5-ton load
- High-strength arm safety locks
- Manual unlock on both columns, so both sides release together
- Hose-burst throttle valve in each cylinder to limit drop if a line fails
- Power unit and cylinders fatigue-tested at a 6-ton working load
- Dynamic test 6 tons, static test 6.5 tons
- Non-slip arm pads and a small tool tray on the support arm
- 2.2 kW motor, single-phase 220V or three-phase 380V, 50/60 Hz
Who it is for
Repair shops, transmission bays, tire centers, and distributors that need a clear-floor 5-ton hoist for SUVs, vans, and light commercial vehicles. Color, labels, and carton marks can be matched on bulk orders.
Specification table
| Item | Value |
|---|---|
| Model | HPL-TG350A |
| Type | Clear-floor gantry two-post, manual bilateral unlock |
| Lifting capacity | 5 t / 5000 kg / 11,000 lb |
| Lifting height | 1800 mm |
| Minimum height | 92 mm |
| Rising time | ≤ 50 s |
| Descent time | 20–50 s |
| Passing width | 2400 mm |
| Machine width | 3420 mm |
| Machine height | 3587 mm |
| Motor | 2.2 kW |
| Voltage | 220V / 380V, 50/60 Hz |
| Net weight | 650 kg |
| Packing | 360 × 50 × 75 cm and 280 × 50 × 75 cm |
FAQ
Floor-plate or clear-floor?
Clear-floor gantry. No base plate across the bay. Overall height is 3587 mm, so it needs more ceiling than a floor-plate lift.
How does the lock release work?
Manual bilateral unlock. Both columns release together for a more even lower.
What protects the vehicle if a hose fails?
Each cylinder has a hose-burst throttle valve that restricts oil flow and slows the drop.
What was the load test?
6-ton dynamic and offset-load test, 6.5-ton static test. Power unit and cylinders were fatigue-tested at a 6-ton working load.
Power options?
2.2 kW, 220V single-phase or 380V, 50 Hz or 60 Hz. State voltage on the order.
How is this different from the 4.5-ton HPL-TG345A?
Same frame size, same 1800 mm lift, same 3587 mm overall height. Rated capacity is 5000 kg instead of 4500 kg, for heavier SUVs and light commercial vans.
