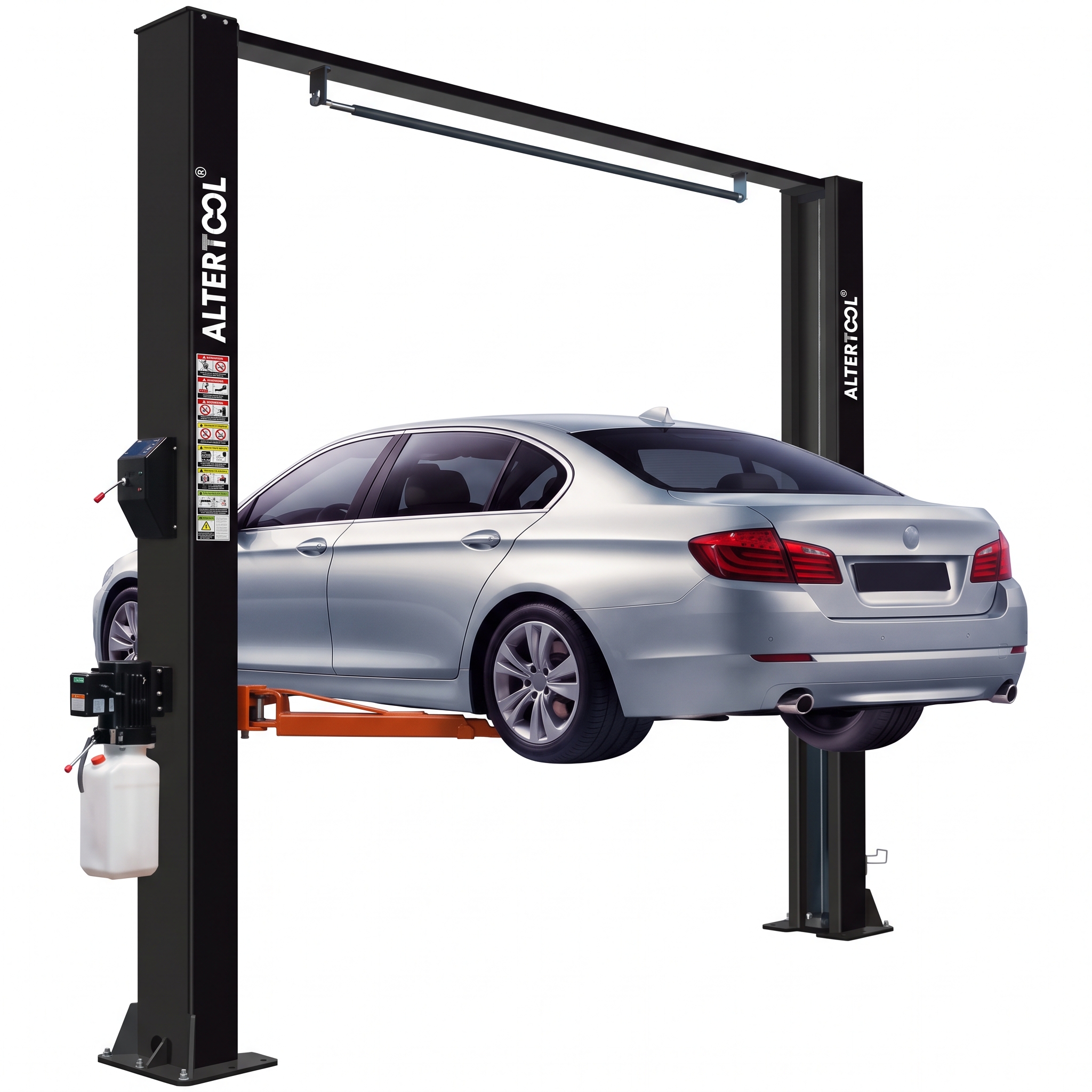

4000kg Clear-Floor Gantry Two-Post Car Lift
The HPX-TG340B is a 4-ton clear-floor two-post car lift with an overhead gantry and no floor plate. Rated capacity is 4000 kg (8,800 lb). The open bay underneath gives full access for transmissions, exhaust, and rolling jacks. Lifting height is 1930–1965 mm. Minimum pad height is 90 mm.
Passing width is 2500 mm and column spacing is 2780 mm. Column height is 3750 mm. Confirm ceiling clearance before install. Rise time is about 45 seconds. Descent is adjustable from 40 to 50 seconds.
Shop features
- Single-side manual unlock: one release point drops both columns together
- Electro-hydraulic dual-column lift, 2.2 kW motor
- 220V or 380V supply, matched to the destination market at order
- 1930–1965 mm lift height for underbody, brake, and exhaust work
- 90 mm minimum pad height for lowered cars
- No floor plate across the bay
Who it is for
Repair shops, transmission bays, tire centers, and distributors that want a clear-floor 4-ton hoist and a single-side lock release. Color, labels, and carton marks can be matched on bulk orders.
Specification table
| Item | Value |
|---|---|
| Model | HPX-TG340B |
| Type | Clear-floor gantry two-post, single-side manual unlock |
| Lifting capacity | 4000 kg / 8,800 lb |
| Lifting height | 1930–1965 mm |
| Minimum height | 90 mm |
| Rising time | 45 s |
| Descending time | 40–50 s, adjustable |
| Passing width | 2500 mm |
| Column spacing | 2780 mm |
| Column height | 3750 mm |
| Motor | 2.2 kW |
| Power supply | 220V / 380V |
| Packing size | 385 × 45 × 77 cm |
| Net weight | Not on this spec sheet — confirm before shipping setup |
FAQ
Floor-plate or clear-floor?
Clear-floor gantry. No base plate across the bay. Column height is 3750 mm, so it needs more ceiling than a floor-plate 4-ton lift.
How does the lock release work?
Single-side manual unlock. One release point unlocks both columns, so the operator does not walk to the second post.
How is this different from HPX-TF340A?
HPX-TF340A is a floor-plate lift with 2824 mm columns. This unit is a clear-floor gantry with 3750 mm columns and single-side unlock. Capacity is the same 4000 kg.
How is this different from the 4.5-ton and 5-ton gantry lifts?
Those use bilateral unlock, 1800 mm lift height, and 3587 mm overall height. This one uses single-side unlock, 1930–1965 mm lift height, and 3750 mm columns.
Power options?
2.2 kW, 220V or 380V. State voltage and frequency on the order.
