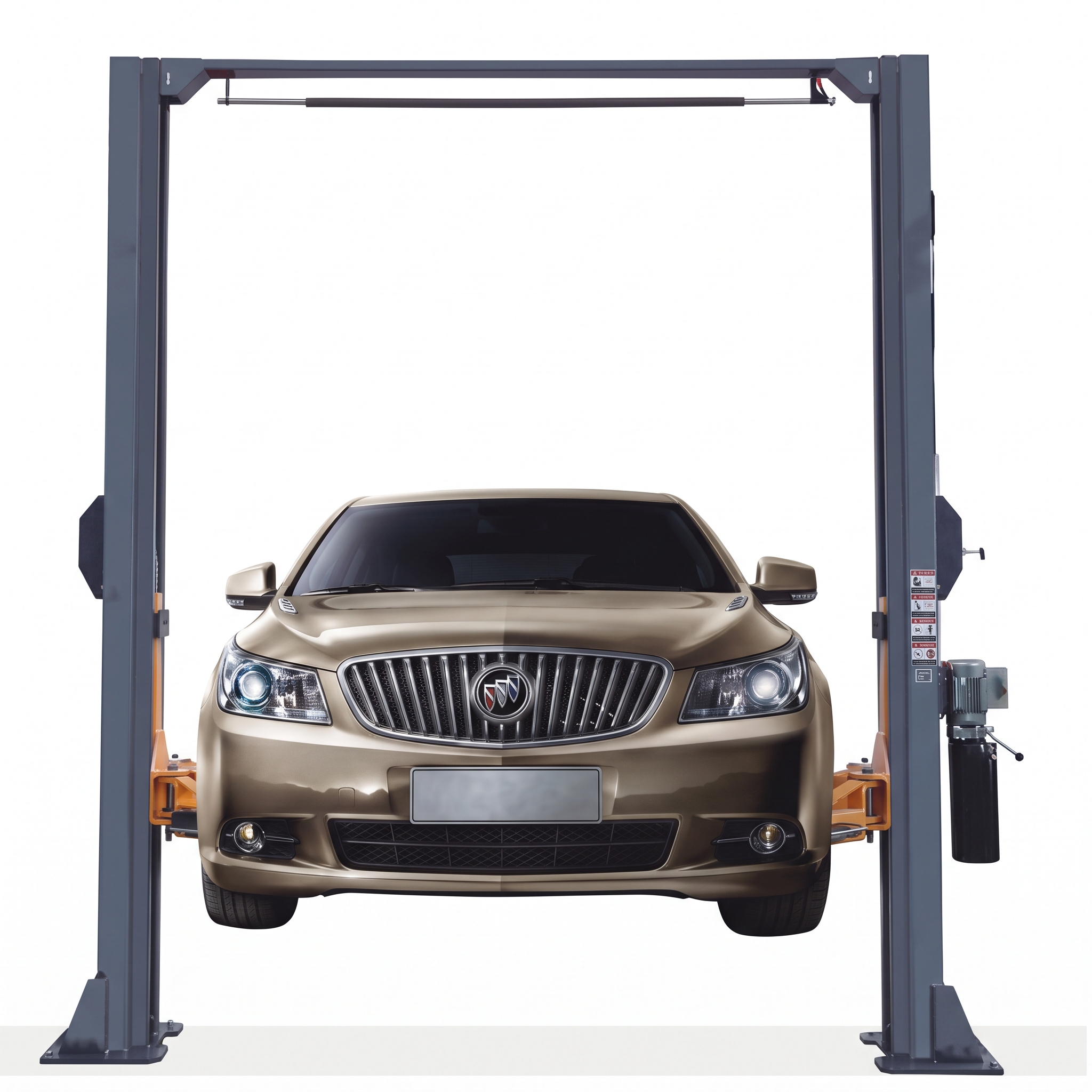

4.5 Ton Clear-Floor Gantry Two-Post Car Lift
The HPL-TG345B is a 4.5-ton clear-floor two-post car lift with an overhead gantry and no floor plate. Rated capacity is 4500 kg (9,900 lb). The open bay underneath gives full access for transmissions, exhaust, and rolling jacks. Lifting height is 1800 mm. Minimum pad height is 92 mm.
Passing width is 2400 mm. Overall machine width is 3420 mm and overall height is 3587 mm. Confirm ceiling clearance before install. Rise time is about 50 seconds. Descent is adjustable from 20 to 50 seconds.
Shop features
- Single-side manual unlock: one release point drops both columns together
- Eight-bend formed columns for higher column stiffness
- One-piece bent arm carriage sized for the 4.5-ton load
- High-strength arm safety locks
- Hose-burst throttle valve in each cylinder to limit drop if a line fails
- Power unit and cylinders fatigue-tested at a 5.5-ton working load
- Dynamic and offset-load test 6 tons, static test 6 tons
- Non-slip arm pads on the support arms
- 2.2 kW motor, 220V or 380V, 50/60 Hz
Who it is for
Repair shops, transmission bays, tire centers, and distributors that want a clear-floor 4.5-ton hoist with single-side lock release. Color, labels, and carton marks can be matched on bulk orders.
Specification table
| Item | Value |
|---|---|
| Model | HPL-TG345B |
| Type | Clear-floor gantry two-post, single-side manual unlock |
| Lifting capacity | 4.5 t / 4500 kg / 9,900 lb |
| Lifting height | 1800 mm |
| Minimum height | 92 mm |
| Rising time | 50 s |
| Descent time | 20–50 s |
| Passing width | 2400 mm |
| Machine width | 3420 mm |
| Machine height | 3587 mm |
| Motor | 2.2 kW |
| Voltage | 220V / 380V, 50/60 Hz |
| Net weight | 650 kg |
| Packing | 360 × 50 × 75 cm and 280 × 50 × 75 cm |
FAQ
Floor-plate or clear-floor?
Clear-floor gantry. No base plate across the bay. Overall height is 3587 mm.
How does the lock release work?
Single-side manual unlock. One release point unlocks both columns, so the operator does not walk to the second post.
What protects the vehicle if a hose fails?
Each cylinder has a hose-burst throttle valve that restricts oil flow and slows the drop.
What was the load test?
6-ton dynamic and offset-load test, 6-ton static test. Power unit and cylinders were fatigue-tested at a 5.5-ton working load.
How is this different from HPL-TG345A?
Same 4.5-ton capacity and same frame size. HPL-TG345A uses bilateral unlock. This unit uses single-side unlock. Fatigue test on this unit is 5.5 tons; static test is 6 tons.
Power options?
2.2 kW, 220V or 380V, 50 Hz or 60 Hz. State voltage on the order.
