4000kg Floor Plate Two-Post Car Lift for Daily Workshop Throughput

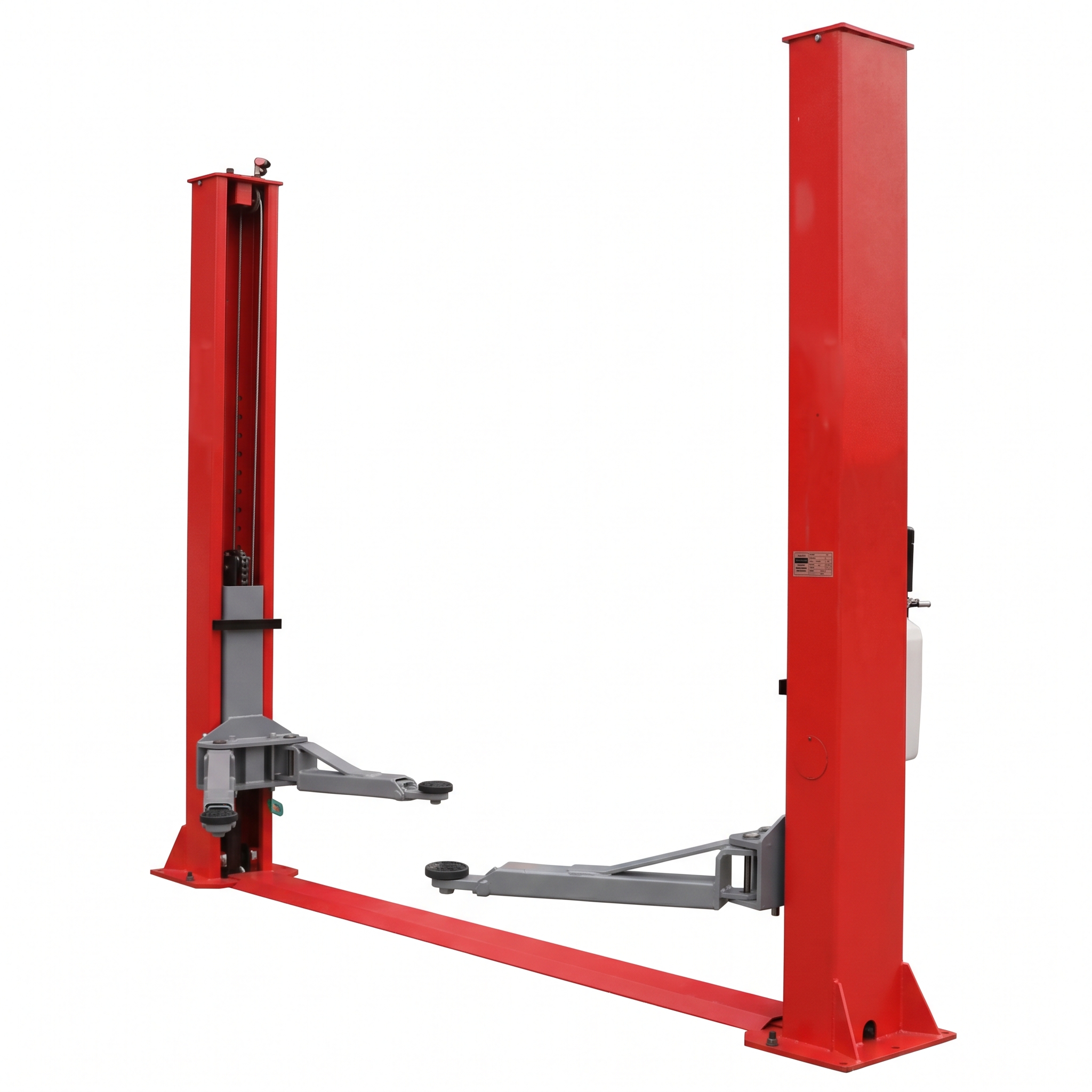

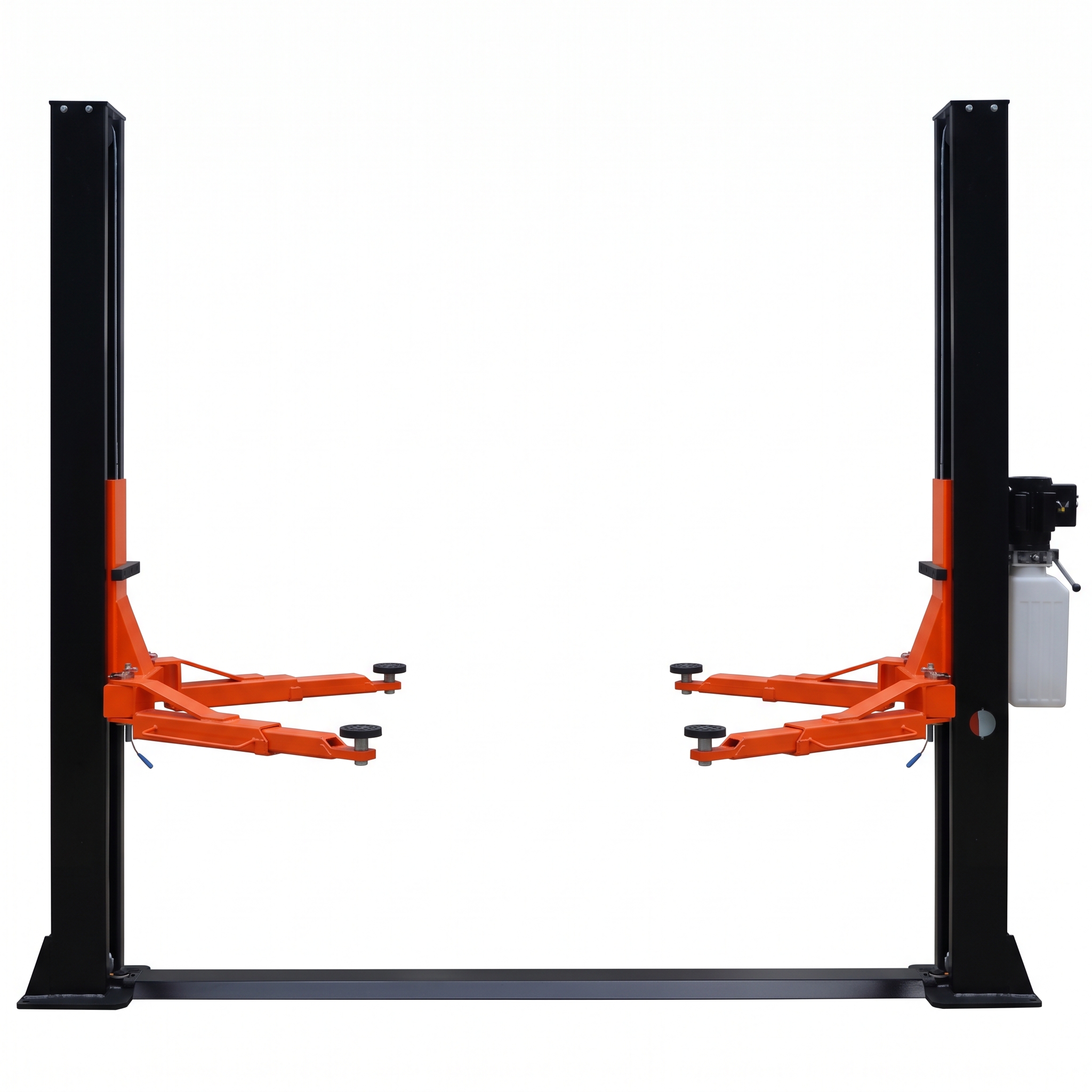

The HPX-TF340A is a 4-ton electro-hydraulic floor-plate two-post car lift built for independent garages, tire shops, and light-truck bays. Rated capacity is 4000 kg (8,800 lb). Minimum pad height is 90 mm, so lowered sports cars and sedans drive on without ramps. Lifting height is 1930–1965 mm, enough for brakes, exhaust, suspension, and underbody service.
A 28 mm base connector keeps the drive-through path low and clear. Through width is 2500 mm and column spacing is 2780 mm, which covers most passenger cars, crossovers, and light commercial vans. Column height is 2824 mm, so the lift fits shops with a standard ceiling once the installer confirms local clearance.
Why buyers choose this 4-ton floor-plate hoist
- Electro-hydraulic dual-column lift, 2.2 kW motor, 19 MPa system pressure
- Rise in about 45 seconds; descent adjustable from 40 to 50 seconds
- Manual lock release with closely spaced lock threads in 45# tempered steel
- 5 mm steel-plate columns and a 14 mm base plate for a stable footprint
- 14 mm formed steel carriage and reinforced lifting arms to limit twist under load
- 98 mm pulleys to reduce cable wear and keep travel smooth
- Power unit mounting holes on both sides, so the pump can sit on the left or right
- Dual supply: 220V or 380V, matched to the destination market at order
- Optional upper limit switch for shops that want a hard top stop
Who it is for
Auto repair shops, tire and brake centers, fleet garages, equipment distributors, and brand owners who need a repeatable 4-ton floor-plate two-post lift. Color, arm pads, control labeling, and carton marks can be matched to a private brand on bulk orders.
Specification table
| Item | Value |
|---|---|
| Model | HPX-TF340A |
| Type | Floor-plate two-post car lift, manual lock release |
| Lifting capacity | 4000 kg / 8,800 lb |
| Minimum height | 90 mm |
| Lifting height | 1930–1965 mm |
| Through width | 2500 mm |
| Column spacing | 2780 mm |
| Column height | 2824 mm |
| Rising time | 45 s |
| Descending time | 40–50 s, adjustable |
| Power supply | 220V / 380V |
| Motor | 2.2 kW |
| System pressure | 19 MPa |
| Net weight | 528 kg |
| Packing size | 295 × 45 × 77 cm |
FAQ
What vehicles can a 4000kg two-post car lift raise?
Passenger cars, crossovers, vans, and light commercial vehicles within 4000 kg. Do not exceed the rated capacity. Proof testing is typically 1.5× rated load before shipment.
Is this a clear-floor or floor-plate lift?
Floor-plate. The low 28 mm base connector leaves a drive-through path and suits shops that do not want an overhead beam. Confirm ceiling height against the 2824 mm columns before install.
Manual lock release or automatic?
Manual lock release. Both columns use a dense lock-thread pattern in tempered steel so the locks seat cleanly. An upper limit switch is optional.
What power does the installer need?
2.2 kW electro-hydraulic power unit, 220V or 380V. Specify voltage, phase, and frequency on the order.
Can the power unit be mounted on either column?
Yes. Bidirectional mounting holes let the pump station face the bay the way the shop works.
MOQ, lead time, and private brand?
Trial orders start at 1 unit. OEM color, logo, and packaging typically ship in 15–30 days depending on quantity. Volume and container pricing is quoted separately.
What is covered after delivery?
Seals, lock parts, cables, pulleys, and hydraulic service kits are available. Technical reply within 24 hours, solution path within 48 hours.
